Smart Tracking Devices for Every Need
Reliable GPS devices designed for accurate tracking and complete control.

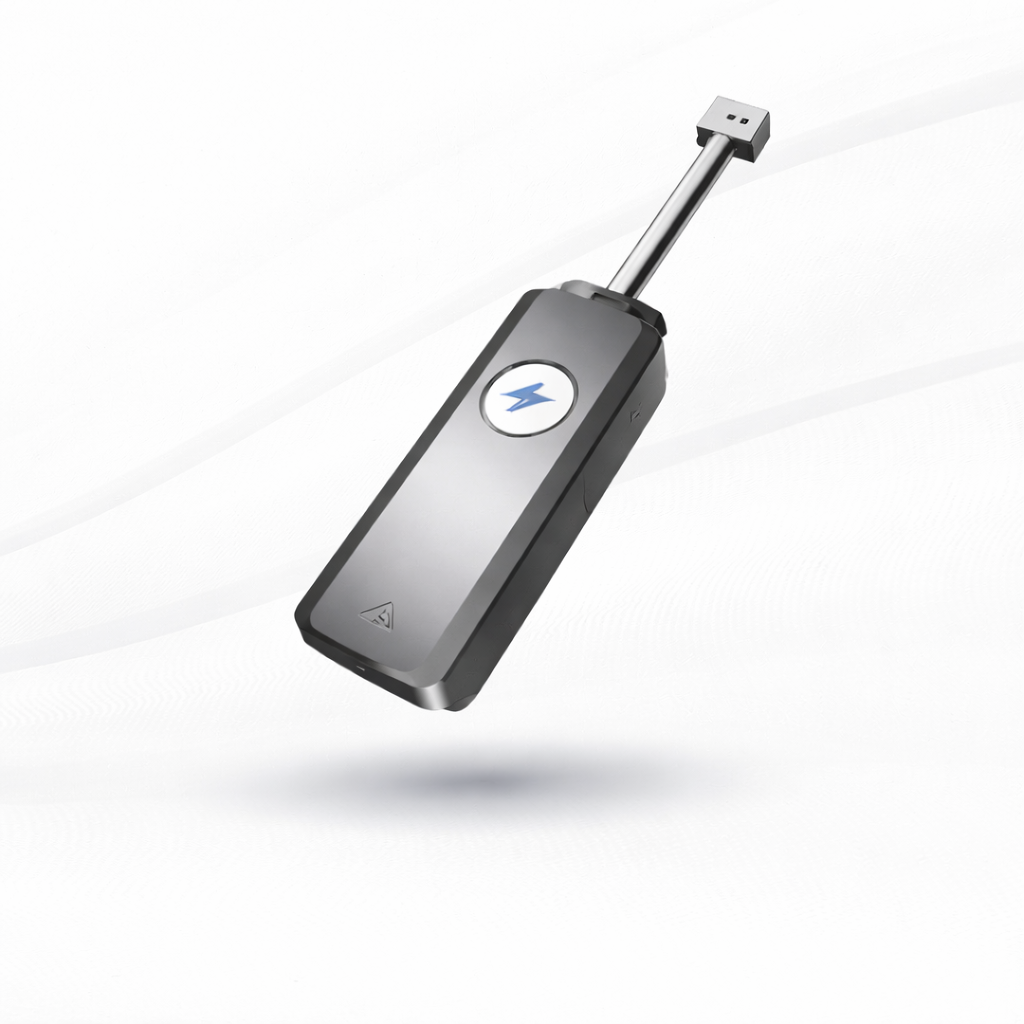

SMART V900
Real-time
Tracking
Remotely
Cut-off
4G
Network
ACC
Detection
Built-in
Battery
Cut-wire
Alarm
Trace
Playback
Low Battery
Alarm
Introduction
V900 is an intelligent vehicle gps tracker which combines 4G full netcom wireless communication technology and GPS/BDS satellite navigation with ACC detection, disassemble alarm, overspeed alarm, Mileage statistics, remotely cut-off petrol/electricity and other functions.
V900 is mainly used in the insurance industry, enterprise fleet industry, auto manufactures or 4S stores, individuals, electric new energy fields, passenger vehicles, taxis, rental vehicles, etc.
Parameter
| Size | 79.5mm(L)*42mm(W)*12.5mm(H) |
|---|---|
| Working Termperature | -20˚C to 75˚C |
| Working Voltage | 9-90V |
| Built-in Battery | 250mAh |
Hardware Spesicification
| Location Accuracy | ≤ 5m |
|---|---|
| Frequency | B1,B2,B3,B4,B5,B7,B8,B28,B38,B40,B41,B66 |
| 2G:850/900/1800/1900MHZ | |
| Positioning Time | Hot Start < 2SEC(Open Sky) |
| Cold Start < 38SEC (Open Sky) | |
| GSM Antenna | Spring Antenna |
| GPS Antenna | Built-in 25mm* 25mm* 4mm Ceramic Antenna |
| Channel | 20 Class |
| GPS Sensitivity | -144 dBm |
| Tracking Sensitivity | -160 dBm |
| GPS LED Indicator | Blue |
| 4G LED Indicator | Yellow |
| Power LED Indicator | Red |
Software Spesicification
| Location Accuracy | ≤ 5m |
|---|---|
| Frequency | B1,B2,B3,B4,B5,B7,B8,B28,B38,B40,B41,B66 |
| 2G:850/900/1800/1900MHZ | |
| Positioning Time | Hot Start < 2SEC(Open Sky) |
| Cold Start < 38SEC (Open Sky) | |
| GSM Antenna | Spring Antenna |
| GPS Antenna | Built-in 25mm* 25mm* 4mm Ceramic Antenna |
| Channel | 20 Class |
| GPS Sensitivity | -144 dBm |
| Tracking Sensitivity | -160 dBm |
| GPS LED Indicator | Blue |
| 4G LED Indicator | Yellow |
| Power LED Indicator | Red |
VS12 4G
Real-time
Tracking
Remotely
Cut-off
4G
Network
ACC
Detection
Built-in
Battery
Cut-wire
Alarm
Trace
Playback
Low Battery
Alarm
Introduction
VS12 (PRO) 4G [Anti Jammer] series works suitably with a wide rangeof vehicles. Thanks to its inbuilt large antenna and compact size, it delivers faster and more accurate positions and can be hidden-installed. In addition to its general features alerts of power supply disconnection and tamper alarm are plus for anti-theft. Ideally for fleet management.
VS12 (PRO) 4G [Anti Jammer] is mainly used in the insurance industry, enterprise fleet industry, auto manufactures or 4S stores, individuals, electric new
energy fields, passenger vehicles, taxis, rental vehicles, etc.
Parameter
| Size | 82mm(L)*44mm(W)*15mm(H) |
|---|---|
| Working Termperature | -20˚C to 75˚C |
| Working Voltage | 9-90V |
| Built-in Battery | 250mAh |
Hardware Spesicification
| Location Accuracy | ≤ 5m |
|---|---|
| Frequency | B1,B2,B3,B4,B5,B7,B8,B28,B38,B40,B41,B66 |
| 2G:850/900/1800/1900MHZ | |
| Positioning Time | Hot Start < 1SEC |
| Cold Start < 32SEC (Open Sky) | |
| GSM Antenna | Built-in Antenna |
| GPS Antenna | Built-in 25mm* 25mm* 2mm |
| Channel | 32 Class |
| GPS Sensitivity | -140 dBm |
| Tracking Sensitivity | -162 dBm |
| GPS LED Indicator | Blue |
| 4G LED Indicator | Yellow |
| Power LED Indicator | Red |
Software Spesicification
| OTA Upgrade | Support |
|---|---|
| Function Port Denation | Not Support |
| Parameter | SMS Command, Platform |
| GPRS Upload | Upload Interval Every 1 Seconds |
| Third-party Checking | WEB/APP |
| ACC Detection | Support |
| Geo-fence | Support |
| Cut-wire Alarm | Support |
| Vibration Alarm | Support |
| Jamming Detection | Support |
VS12 (PRO) 4G [Anti Jammer]
Real-time
Tracking
Remotely
Cut-off
4G
Network
ACC
Detection
Built-in
Battery
Cut-wire
Alarm
Trace
Playback
Low Battery
Alarm
Introduction
VS12 4G series works suitably with a wide rangeof vehicles. Thanks to its inbuilt large antenna and compact size, it delivers faster and more accurate positions and can be hidden-installed. In addition to its general features alerts of power supply disconnection and tamper alarm are plus for anti-theft. Ideally for fleet management.
VS12 4G is mainly used in the insurance industry, enterprise fleet industry, auto manufactures or 4S stores, individuals, electric new
energy fields, passenger vehicles, taxis, rental vehicles, etc.
Parameter
| Size | 82mm(L)*44mm(W)*15mm(H) |
|---|---|
| Working Termperature | -20˚C to 75˚C |
| Working Voltage | 9-90V |
| Built-in Battery | 250mAh |
Hardware Spesicification
| Location Accuracy | ≤ 5m |
|---|---|
| Frequency | B1,B2,B3,B4,B5,B7,B8,B28,B38,B40,B41,B66 |
| 2G:850/900/1800/1900MHZ | |
| Positioning Time | Hot Start < 1SEC |
| Cold Start < 32SEC (Open Sky) | |
| GSM Antenna | Built-in Antenna |
| GPS Antenna | Built-in 25mm* 25mm* 2mm |
| Channel | 32 Class |
| GPS Sensitivity | -140 dBm |
| Tracking Sensitivity | -162 dBm |
| GPS LED Indicator | Blue |
| 4G LED Indicator | Yellow |
| Power LED Indicator | Red |
Software Spesicification
| OTA Upgrade | Support |
|---|---|
| Function Port Denation | Not Support |
| Parameter | SMS Command, Platform |
| GPRS Upload | Upload Interval Every 1 Seconds |
| Third-party Checking | WEB/APP |
| ACC Detection | Support |
| Geo-fence | Support |
| Cut-wire Alarm | Support |
| Vibration Alarm | Support |
| Jamming Detection | Support |

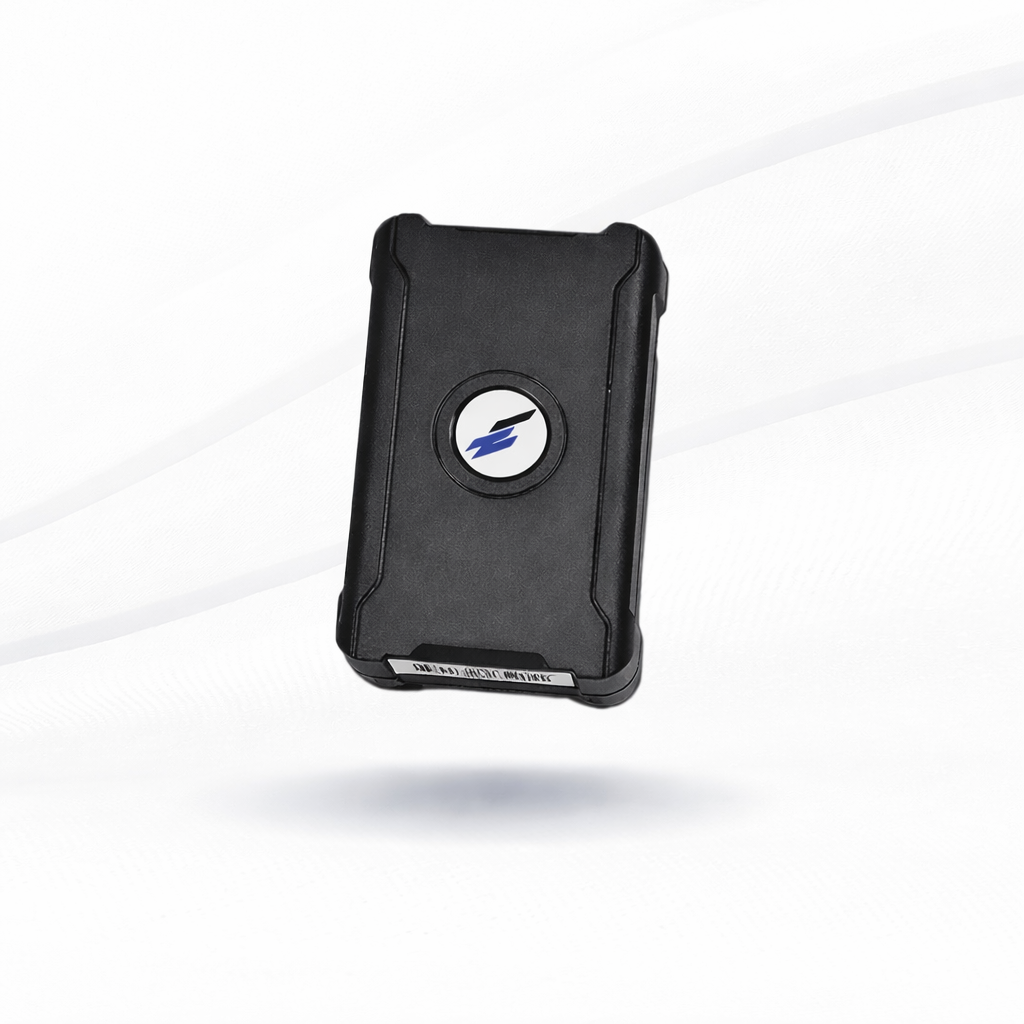

S20
Real-time
Tracking
Light Sensor & Disassemble Alarm
Strong
Mangnetic
Remotely Voice
Monitor
Long Life
Battery
Multiple Alert
Protections
Introduction
Asset GPS tracker S20 is self-contained battery powered device and can be easily moved from vehicle to vehicle,placed in a package,or even used to monitor and track valuable assets.
GPS tracker S20 is a professional tracking device for transport & logistics industry, refrigerated cargo industry, container tracking,construction, valuable assets and criminal investigation.
Main
| Size | 80mm(L)*50mm(W)*32mm(H) |
|---|---|
| Working Termperature | -25˚C to 80˚C |
| Working Voltage | 3.7V |
| Weight | 170g |
| Built-in Battery | 5800mAh |
Hardware Specification
| Location Accuracy | <= 10m |
|---|---|
| GPS Chip | MTK2503D |
| GSM Frequency | 850/900/1800/1900MHZ |
| Hot Start < 2SEC(Open Sky) | |
| Positioning Time | Warm Start < 15SEC |
| Cold Start < 38SEC (Open Sky) | |
| GSM Antenna | Spring Antenna |
| GPS Antenna | Built-in 25mm*25mm*2mm Ceramic Antenna |
| GPRS | Class 12. TCP/IP Built-in GSM Module |
| Channel | 20 Class |
| GPS Sensitivity | -144 dBm |
| Tracking Sensitivity | -160 dBm |
| Power LED Indicator | Red |
| GPS LED Indicator | Blue |
| GPRS LED Indicator | Green |
Software Specification
| Data Upgrade Port | Not Support |
|---|---|
| Function Port Denation | |
| Not Support | |
| Parameter Setting | SMS Command, Platform |
| GPRS Upload | Upload Interval Every 10 Seconds |
| Third-party Checking | WEB/APP |
| ACC Detection | Not Support |
| Geo-fence | Support |
| Low Battery Alarm | Support |
| Vibration Alarm | Not Support |
| Disassemble Alarm | Support |

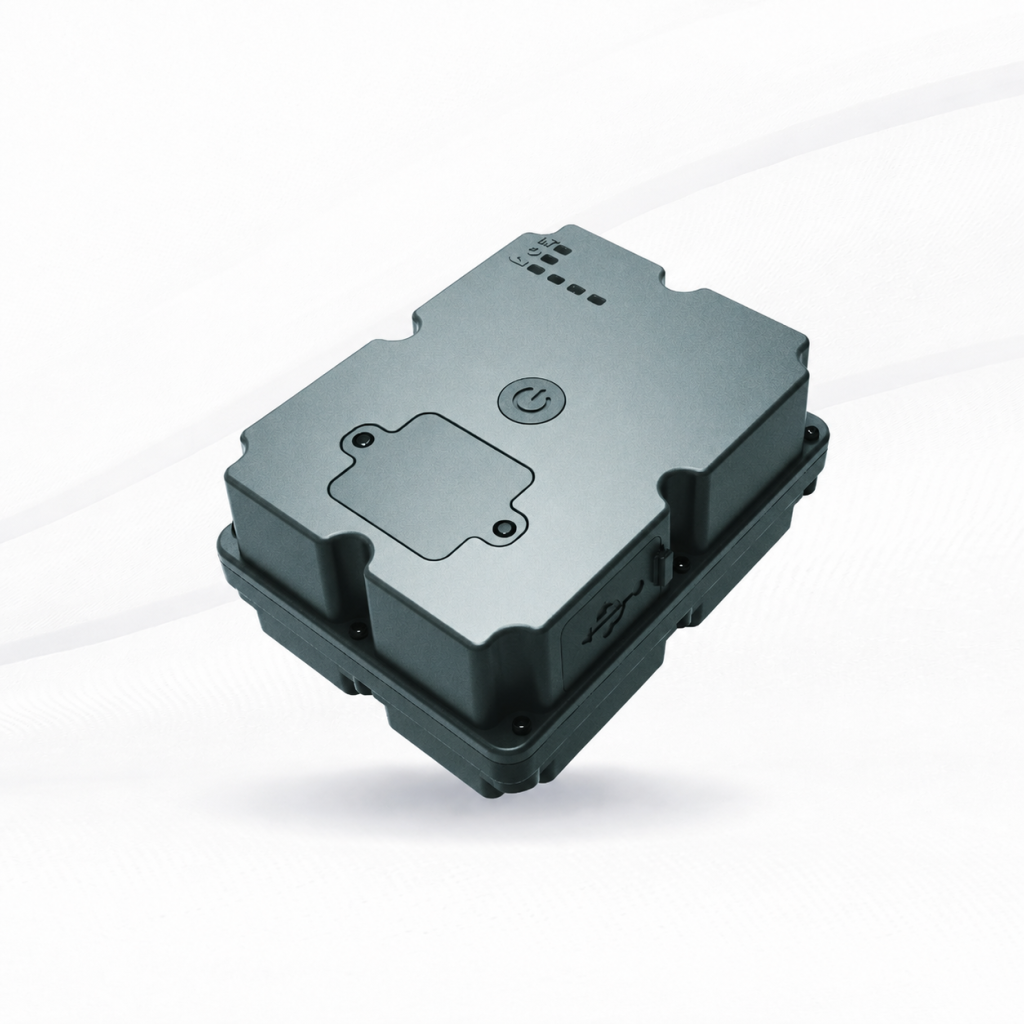

S20 PRO
Real-time
Tracking
SOS One-touch
Alarm
Strong
Mangnetic
Remotely Voice
Monitor
Long Life
Battery
Multiple Alert
Protections
Introduction
Asset GPS tracker S20 Pro is a low-power, ultra long standby 4G positioning tracker equipped with a 7500mAh battery, supports Type-C interface cycle charging and can issue an SOS alarm in an emergency.
It can be used for tracking personnel, transportation, and logistics industries, container tracking, valuable assets and criminal investigations, etc.
Main
| Size | 95mm(L)*72mm(W)*35mm(H) |
|---|---|
| Working Termperature | -20˚C to 75˚C |
| Working Voltage | 3.7V |
| Weight | 287g |
| Built-in Battery | 7500mAh |
Hardware Specification
| Location Accuracy | <= 10m |
|---|---|
| GPS Chip | MTK2503D |
| GSM Frequency | 850/900/1800/1900MHZ |
| Hot Start < 2SEC(Open Sky) | |
| Positioning Time | Warm Start < 15SEC |
| Cold Start < 38SEC (Open Sky) | |
| GSM Antenna | Spring Antenna |
| GPS Antenna | Built-in 25mm*25mm*2mm Ceramic Antenna |
| GPRS | Class 12. TCP/IP Built-in GSM Module |
| Channel | 20 Class |
| GPS Sensitivity | -144 dBm |
| Tracking Sensitivity | -160 dBm |
| Power LED Indicator | Red |
| GPS LED Indicator | Blue |
| GPRS LED Indicator | Green |
Software Specification
| Data Upgrade Port | Not Support |
|---|---|
| Function Port Denation | |
| Not Support | |
| Parameter Setting | SMS Command, Platform |
| GPRS Upload | Upload Interval Every 10 Seconds |
| Third-party Checking | WEB/APP |
| ACC Detection | Not Support |
| Geo-fence | Support |
| Low Battery Alarm | Support |
| Vibration Alarm | Not Support |
| Disassemble Alarm | Support |

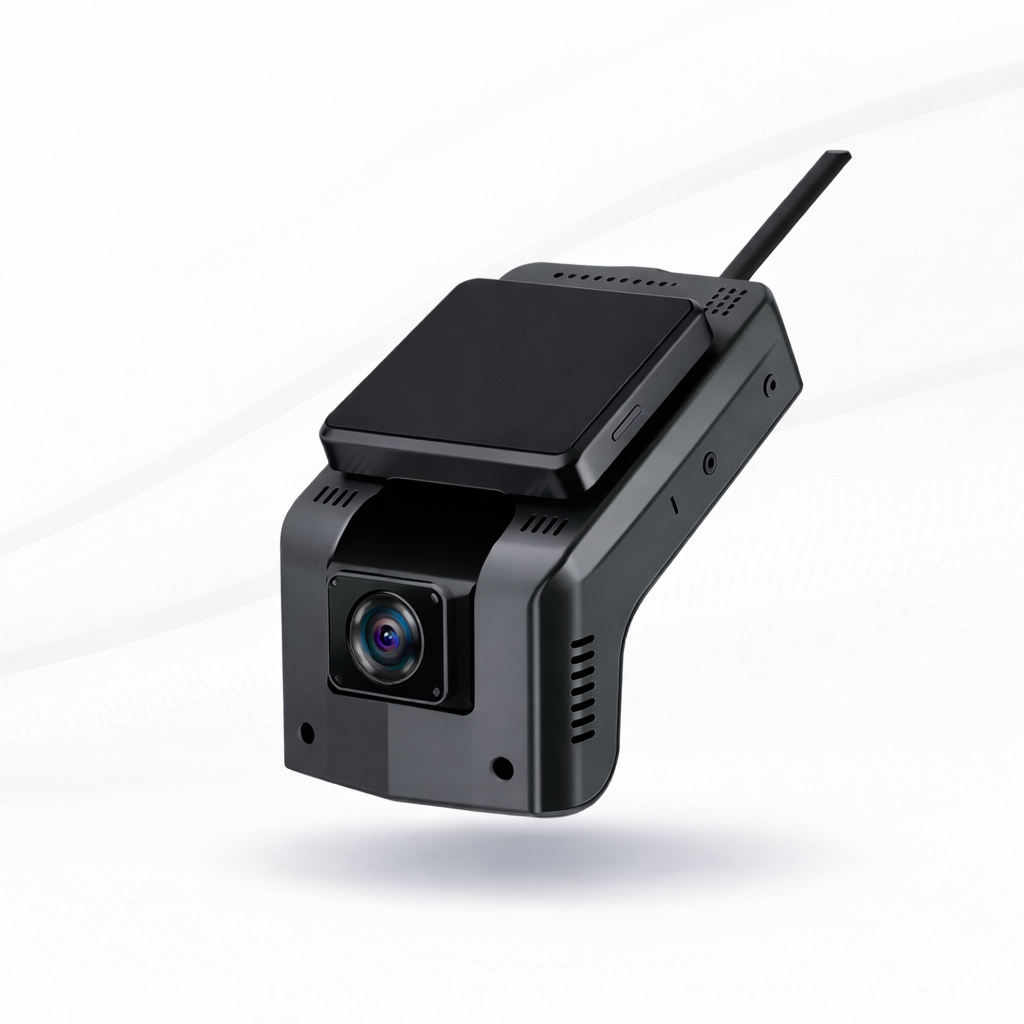

DC432
Fatigue Driving
Alarm
Starting
The Car
Smoking
Alarm
Virtual
Bumper
Phone Call
Monitoring
Seat Belt
Detection
Front Collision
Warning
Distracted Drive
Monitor
Pedestrian Warning
Lane Departure
Warning
Introduction
DC432 is a leading automotive active safety solution that integrates advanced Driver Assistance Systems (ADAS) and Driver Monitoring Systems (DMS) with built-in cameras. A key feature is its ability to automatically calibrate the AI functions, greatly facilitating the installation process.
DC432 intelligently adjusts the ADAS and DMS parameters according to the mounting position, ensuring high accuracy in recognizing risky situations.
In addition to its outstanding technical capabilities, DC432 provides a cutting-edge integrated active safety solution at a cost-effective price point. It complies with national standard protocols, making it compatible with video surveillance and regulation of driving behavior for online vehicle fleets, taxis, and logistics.
Main
| Operating System | Linux System |
|---|---|
| CPU | Dual-core, 1.2GHz |
| RAM | 2GB 16-bit DDR 3 |
| Memory | Micro SD card ( Max. 512GB, FAT32, ≥Class10 ) |
| G-sensor | 3 Axis Accelerometer |
| GNSS | GPS + Beidou (With external G-mouse) |
| SIM | Nano SIM |
| LED | Red/Blue (Record), Orange (Network), Green (GNSS) |
| I/O | RS232 * 1 (Optional) |
Hardware Spesicification
Video / Audio
ADAS Camera
| Sensor type | 1/2.9”, 2 million pixel CMOS sensor |
|---|---|
| FOV | D: 125°H:105° V:58° |
| Resolution | 1920*1080s |
| Frame rate | 1080p@30fp |
DMS Camera
| Sensor type | 1/3”, 2 million pixel CMOS sensor, with IR night vision |
|---|---|
| FOV | D: 120°H:100° V:45° |
| Resolution | 1920*1080s |
| Frame rate | 1080p@30fp |
Others
| Power supply | 9-36VDC |
|---|---|
| Colour | Black |
| Weight | 189g |
| Dimensions | 66mm* 88mm* 98mm |
| Operating temperature | -20°C to +70°C |
| Operating humidity | 10 % - 90%, Non- condensing |

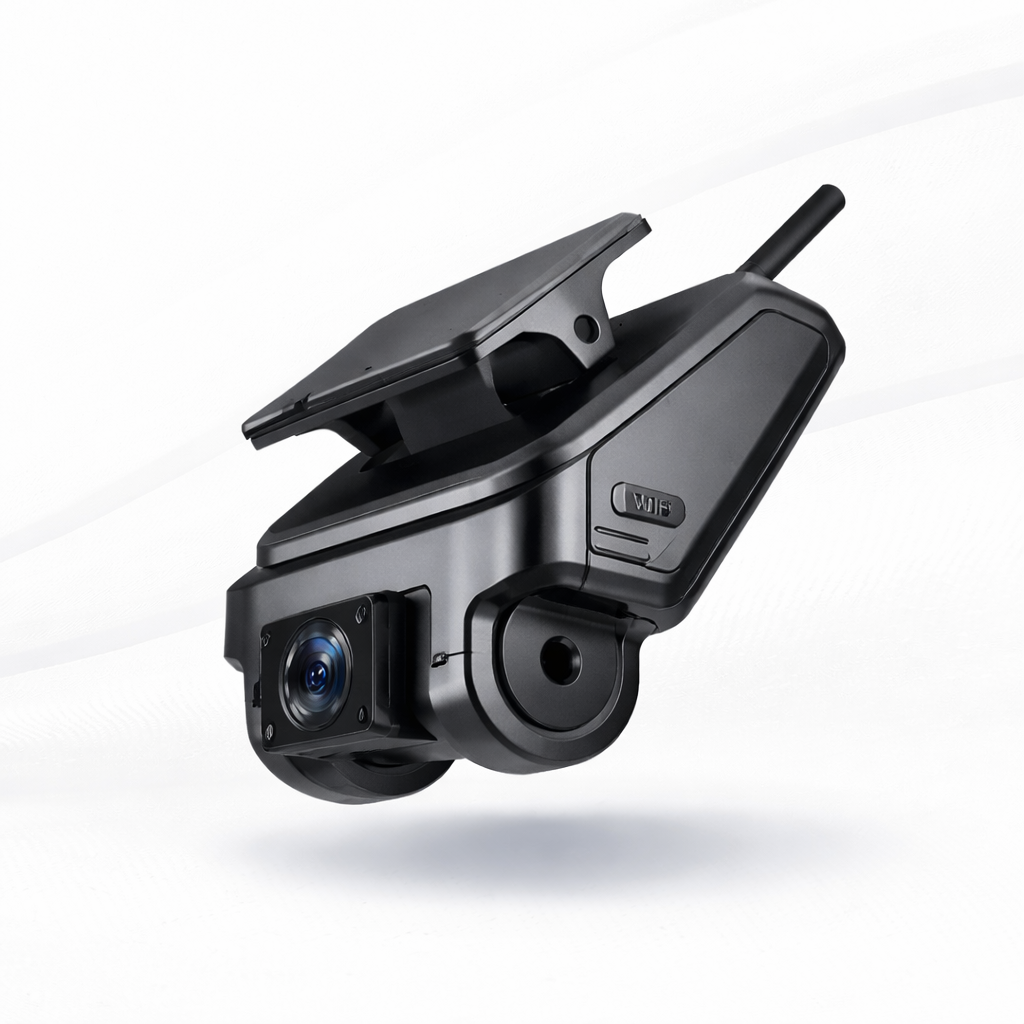

DC433
4G + WIFI
System
Dual Channel Recording
GPS
Tracking
Two-way
Comunication
Live Streaming
Linux Os
System
Fatigue Driving Alarm
Seat Belt
Detection
AI
System
Phone Call
Monitoring
Introduction
F-DC433 is an advanced automotive safety solution intergrating ADAS and DMS in a single intelligent platform.
Powered by AI algorithms, it detects dangerous driving behaviours such as fatigue, distraction, phone usage, and failure to wear a seatbelt, and provides timely voice alerts to enhance driving safety.
Hardware Specification
| CPU | 32-bit RISC CPU 1.0GHz, 1T NPU |
|---|---|
| OS | Linux |
| RAM | 4GB DDR3 |
| I/O | ACC* 1, Relay* 1, RS232* 1, Digital Input* 2 (Optional) |
| Micro SD Card | Max 512G |
| Rear Camera | Optional |
| Button | ON/OFF |
| Memory | Built-in 8GB |
Network and Data
| Network | LTE Cat1 or LTE Cat4 + WCDMA + GSM |
|---|---|
| 4G Frequency | LTE-FDD-LTE B1/B3/B5/B7/B8/B20/B28 |
| 3G Frequency | WCDMA B1/B5/B8 |
| Cold Start < 38SEC (Open Sky) | |
| GSM Antenna | Spring Antenna |
| Data Transmission | Cat 4 |
| GPS Location | GPS, A-GPS, BeiDou |
| Data Service | HSDPA, HSPA+, LTE |
Main Function
| GPS Tracker | Support, App & PC Platform |
|---|---|
| DVR | 2560*1440 resolution with 25fps, Loop-Record |
| Cameras | Forward Camera: 2560*1440, adjustable viewing angle |
| Wi-Fi | Supported for device conguration |
| Protocol | JT/T 808 + JT/T1078 +T/JSATL |
| G-Sensor | 3 Axis Accelerometer |
| TS Streaming | Support, TS Streaming Record |
| MIC & Speaker | Support Dual-way Talking |
| Remote Monitoring | App & Platform, Remote Video and Remote Image |
| Playback | Support APP playback with WiFi and Remotely |
| Live View | P2P Live View, Front-Car/Rear-Car Live View streaming Via APP |
| History Tracking Playback | Support One Month |
| Vibration Alarm | Support |
| Over-speed Alarm | Support |
| Geofence Alarm | Support |
| Park Monitoring | Support Time-Lapse Photography |
| Platform Report | History tracking report, Ignition on/o report, Alarm report |
| Power Supply | Support DC12-30V input |
Others
| Operating Temperature | -20˚C~70˚C |
|---|---|
| Operating Humidity | 10~90%, Non-Condensed |

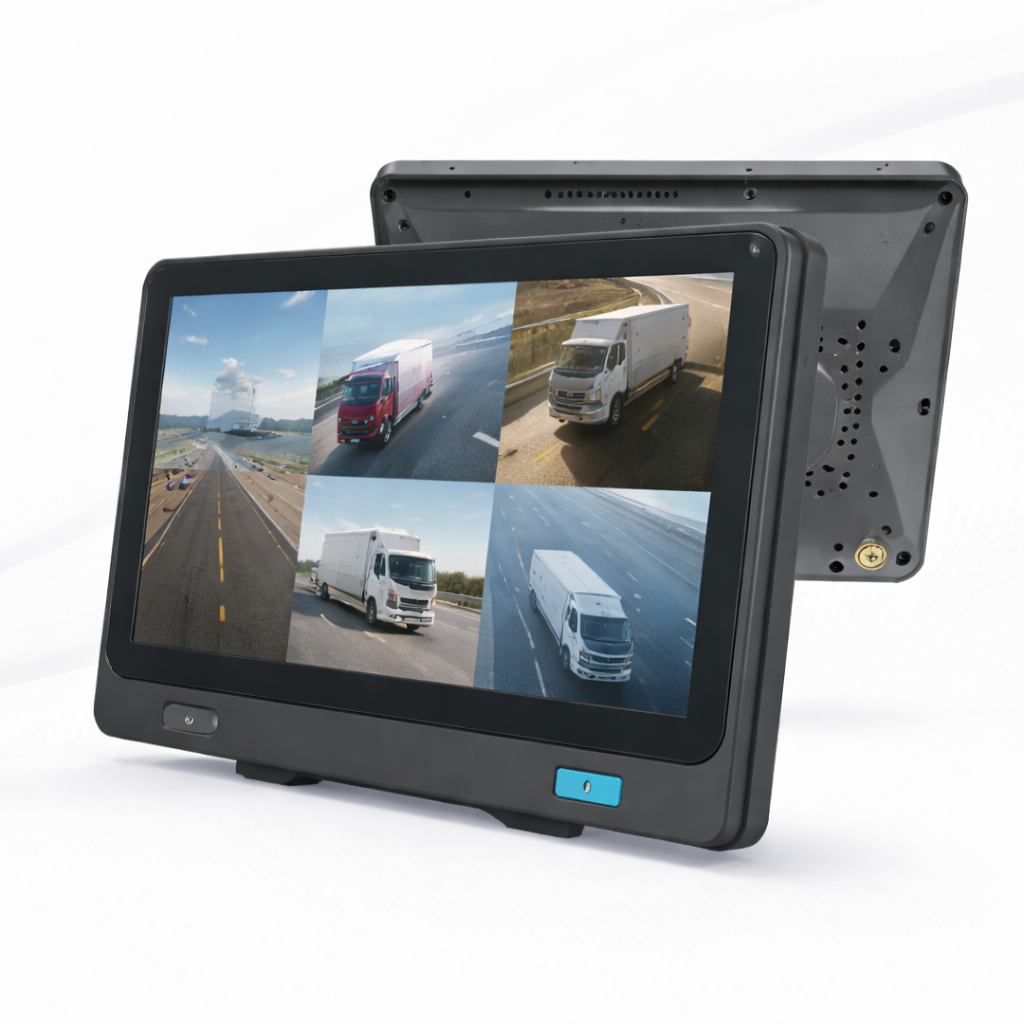

DC450
Fatigue Driving
Alarm
Starting
The Car
Smoking
Alarm
Virtual
Bumper
Phone Call
Monitoring
Seat Belt
Detection
Front Collision
Warning
Distracted Drive
Monitor
Pedestrian
Warning
Lane Departure
Warning
Introduction
DC450 is an intergrated in-vehicle safety device combining satellite positioning, video monitoring, active safety features, and an onboard screen. It supports fleet monitoring, operations management, dispatching, driving safety and standardized driving behaviour.
Powered by advanced deep learning, it offers intelligent safety functions such as ADAS, DMS, and BSD, enabling reliable performance in complex driving environments. These Al capabilities enhance driving safety, efficiency, and overall user experience while helping regulate driver behaviour.
Designed for buses, logistics fleets, and similar applications, the DC450 supports up to five 1080P video channels, features a clean and durable design with strong vibration resistance, ofers flexible installation, and delivers high reliability.
Main
| Operating System | Linux System |
|---|---|
| CPU | 32-bit RISC CPU 1GHz, 1T NPU |
| RAM | 2GB 16-bit DDR3 |
| Memory | SD card (Max. 512GB) + MSATA Hard Disk (Optional) |
| G-sensor | 3 Axis Accelerometer |
| GNSS | GPS + Beidou (With external G-mouse) |
| SIM | Normal SIM |
| LED | Red/Blue (Record), Orange (Network), Green (GNSS) |
| I/O | ACC*1, SOS*1, DIN*3, DUOT*3, RS232*2 |
Network
Video / Audio
ADAS Camera
| Sensor type | 1/2.9",2 million pixel CMOS sensor |
|---|---|
| FOV | D: 125 H:105 V:58° |
| Resolution | 1080s * 5CH |
| Frame rate | 1080p@30fp |
DMS Camera
| Sensor type | 1/3,2 million pixel CMOS sensor, with IR night vision |
|---|---|
| FOV | D: 120"H:100" V:45" |
| Resolution | 1080s * 5CH |
| Frame rate | 1080p@30fp |
Others
| Power supply | 9-36VDC |
|---|---|
| Colour | Black |
| Weight | 1.45KG |
| Dimensions | 25*17*3.5cm |
| Operating temperature | -20°C to +70°C |
| Operating humidity | 10 %-90%, Non-condensing |
